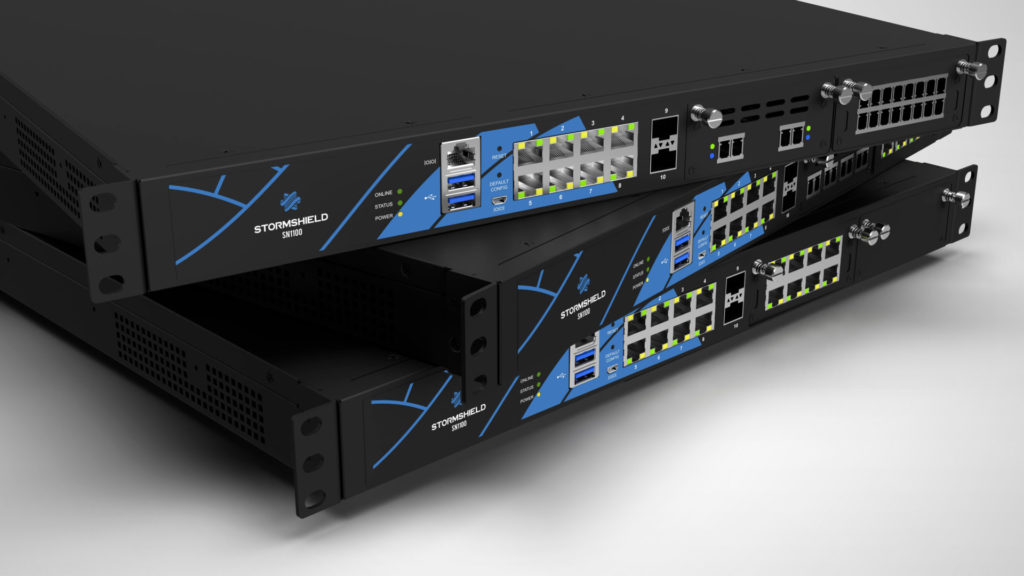

SN1100

SN1100 essentials

Looking for a complete, resilient network security product? The SN1100 firewall protects the heart of your infrastructure with its unified security system (firewall, intrusion prevention, application control, antivirus, antispam, web filtering, etc.). Its high availability, redundant power supply and link aggregation capabilities allow you to build a resilient, complex architecture.

Performance
59.4 Gbps
firewall
Speed
13.4 Gbps
IPsec VPN
Speed
6.7 Gbps
Threat Prevention

Trust

A qualified and certified product

Security for resilient complex infrastructures

The SN1100 firewall has link aggregation (LACP) and spanning-tree management (MSTP/RSTP) functions. Coupled with high availability and a redundant power supply, this security product ensures that your complex infrastructure is cyber-secure.

A protection tailored to the core network

The SN1100 firewall’s network segmentation, filtering and routing functions, combined with 25 Gbps fibre interfaces (SPF28), provide ideal, high-performance protection for your core network.

Technical specifications of the SN1100

Performances
Firewall (1518 byte UDP) 59.4 Gbps
Firewall (IMIX) 30.7 Gbps
IPS (1518 byte UDP) 48.3 Gbps
IPS (IMIX) 13.3 Gbps
Threat Prevention (Firewall, IPS, antivirus, IP Reputation, webservice, with logging enabled) 6.7 Gbps
Threat Prevention + SSL decryption –
VPN
IPSec – AES-GCM256 (1408 bytes) 13.4 Gbps
IPSec – AES-GCM256 (IMIX) 6.6 Gbps
Max number of IPSec VPN tunnels (1024kbps per tunnel) 4,700
Number of simultaneous SSL VPN clients 1,600
Network connectivity
Max number of simultaneous sessions 1,800,000
Number of new sessions per second 250,000
Connectivity
1000BASE-T copper interfaces 8-24
2.5GBASE-T copper interfaces 0-16
10GBASE-T copper interfaces 0-8
1Gb SFP interfaces 0-16
10Gb SFP+ interfaces 2-10
25Gb SFP28 interfaces 0-4
40Gb QSFP+ interfaces –
100Gb QSFP28 interfaces –
Bypass pairs (on copper ports) –
Optional network extension modules 2
System
Number of filter rules (Recommended / specific configuration) 8,192 / 32,768
Max number of static routes 7,680
Max number of dynamic routes 10,000
Redundancy
High Availability (Active/Passive) ✓
Redundant SSD ✗
Redundant power supply ✓ (option – hot swappable)
Redundant ventilation (hot swappable) ✗
Hardware
Log storage > 400 GB SSD
Optional storage for log (Big Data option) –
TPM chip ✓
MTBF at 25°C (years) 27.3
Racking 1U – 19"
Height x Width x Depth (mm) 44.45 x 440 x 540
Weight 8.11 kg (17.9 lbs)
Packaged Height x Width x Depth (mm) 184 x 573 x 710
Packaged weight 11.66kg (25.71 lbs)
Power supply (AC) 100-240V 60-50Hz 5A-3A
Power supply (DC) -36 – -72VDC 12-6 A (option)
Power consumption (idle/avg/max, W) 52 / 112 / 144
Fan 3
Noise level 65 dBA
Thermal dissipation (idle/avg/max, BTU/h) 177 / 382 / 491
Operational temperature 0° to 40°C (32° to 104°F)
Operating relative humidity (without condensation) at 40°C (104°F) 0% to 95%
Storage temperature -30° to 65°C (-22° to 149°F)
Storage relative humidity (without condensation) at 60°C (140°F) 5% to 95%
Certifications
Compliance CE/FCC/CB
Caption

Compare this product with:

Secure, dynamic firmware

The firmware of Stormshield Network Security (SNS) firewalls is regularly updated, so that you can benefit from new features and patches. Some major releases also deliver performance enhancements for the SN1100 firewall. Explore the latest developments in the new version, including enhanced protection, easier management and new features.

FAQ

Your questions about the SN1100 firewall

Who is the SN1100 designed for?

The SN1100 is a firewall designed for organisations and businesses with complex infrastructures. It offers a level of performance tailored to the requirements of managing multiple VPN tunnels or deploying SD-WAN infrastructures.

What slots are available on the SN1100?

The SN1100 firewall lets you choose between copper (1 GbE, 2,5 GbE and 10 GbE) and fibre (1 GbE, 10 GbE and 25 GbE) network interfaces; see the datasheet for extension modules. This strong network modularity ensures the security product is perfectly tuned to your infrastructure.

Where can I find SN1100 certificates of conformity?

You may need the technical documents and the CE/EU declaration of conformity for the SN1100, or the declarations of conformity for RoHS and REACH. To obtain these certificates or attestations, please get in touch with your sales contact or contact us directly.

What maintenance packs are available for the SN1100?

To maintain your SN1100, we have created two maintenance packs: the Essential Security Pack and the Premium Security Pack. They guarantee that protection systems are kept up to date, and include hardware maintenance, corrective and upgradable software updates, access to technical support and a security monitoring area.

Is the SN1100 qualified?

The SN1100 firewall is qualified at Standard level by ANSSI. This trusted cybersecurity product is therefore recognised by the French government and all the European countries that have ratified the mutual recognition agreement. It is also qualified as Producto Cualificado and Producto Aprobado by the CCN in Spain.

Where can I find SN1100 libraries and Visio templates?

Libraries, Visio templates and visuals for the SN1100 and the entire Stormshield Network Security (SNS) range can be found in dedicated zipped documents for your network link design needs.
